Preflix Instrumentation Cables

We manufacture an extensive range of product in the process instrumentation space. While various crucial projects associated to power generation & distribution, chemical & fertilizer industries along with a range of other types of engineering industries, the process instrumentation is of prime importance in measurement, supervision and control. With advancing techniques and the introduction of microprocessor based/computerized instrumentation, stringent quality requirements along with special electrical parameters for instrumentation cables are a must now.

Owing to the criticality, it is a given that the cables needs to be designed and executed with utmost care, We, at Preflix, put in our thorough efforts not only to make sure the quality and design suits the demand but also the said international and Indian standards are met. The compromise in quality is something that is not accepted or thought of at any juncture of the product design or manufacture. Basis our sturdy product, we are now emerging as one of the top brand in the Cable and Wire space.

Range of Instrumentation Cables:-

Conductor: 0.4 mm dia (0.126 Sq.mm) to 2.5 sq.mm. or higher sizes of electrolytic copper wire, Tinned/untinned, solid/stranded copper conductors.
Insulation: 70/85/105oC. Grade PVC, Polyethylene, Halogen Free FRLS Polymeric Compounds.
Elements: Pairs/Triples/Quads, colour coded/number printed ring marked/dual colour extruded.
Shields: Aluminium Polyester tape screen with Copper drain wire or alternately with with Copper wire braiding. Individual element or overall shielding as specified.
Element laying: Concentric formation or unit & group formation as per applicable specification.
Amounting: Galvanised steel wire/strip amount.
Sheathing: PVC 70/90oC. grade, PVC FRLS, ZHFR, CSP, PCP, EVA, etc.
Specification: BS:5308 (1 & 2), iec-189 (1 & 2), VDE 0815, ENI 0181.00 and customers specifications.

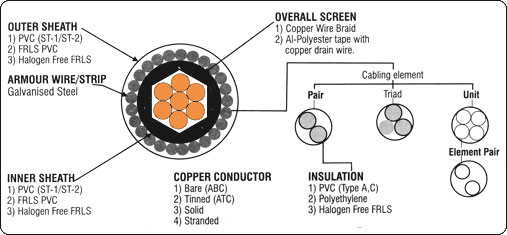

Typical Instrumentation Cable Constructions

Section Download
INDIVIDUAL & OVERALL SHIELDED -ARMOURED INSTRUMENTATION CABLES LP
INDIVIDUAL & OVERALL SHIELDED -UN ARMOURED INSTRUMENTATION CABLES LP
OVERALL SHIELDED – ARMOURD INSTRUMENTATION CABLES LP
OVERALL SHIELDED -UN ARMOURED INSTRUMENTATION CABLES
ARMOURED INSTRUMENTATION CABLE
IDENTIFICATION OF PAIR TO IS BS 5308 PART-1
IDENTIFICATION OF PAIR TO IS BS 5308 PART-2
